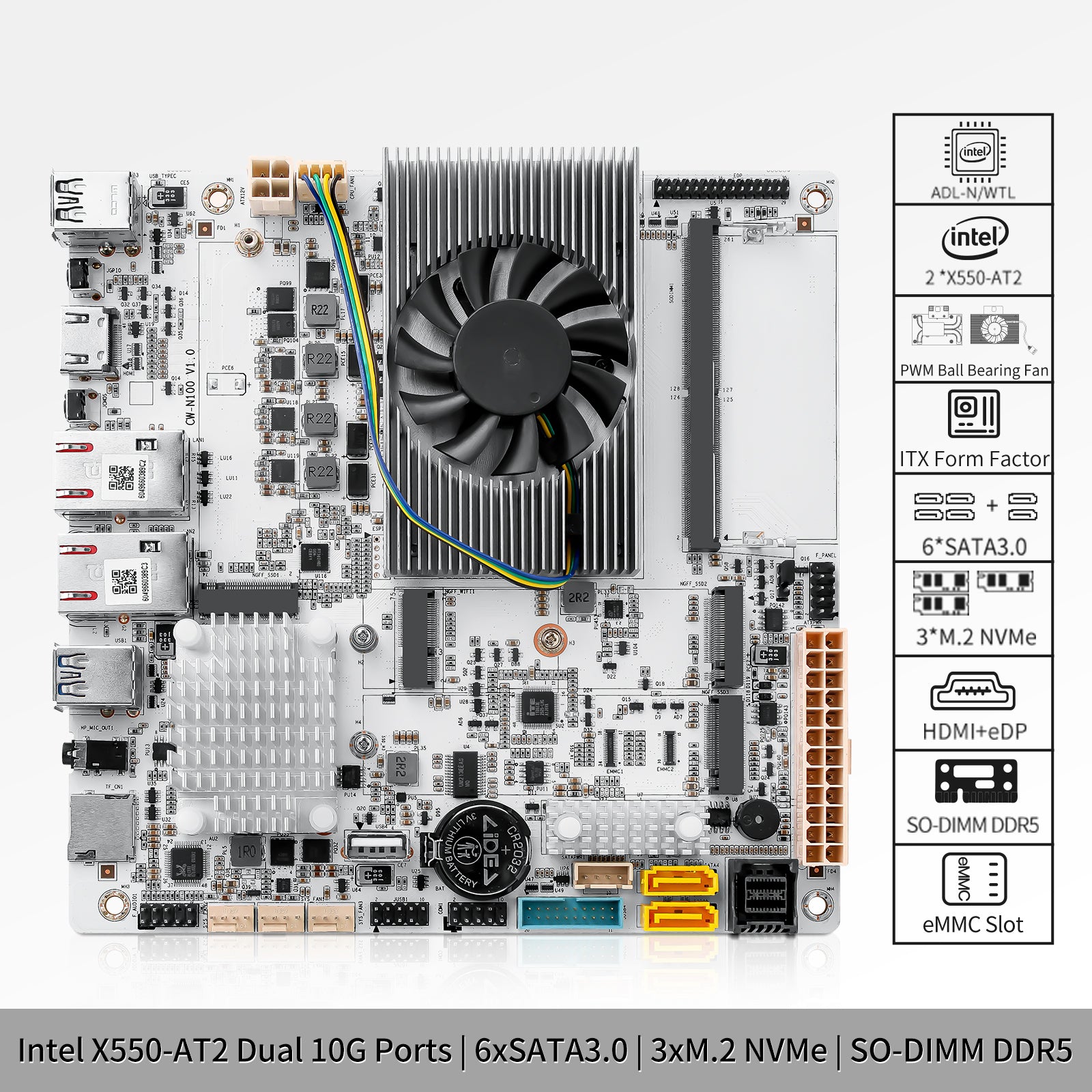

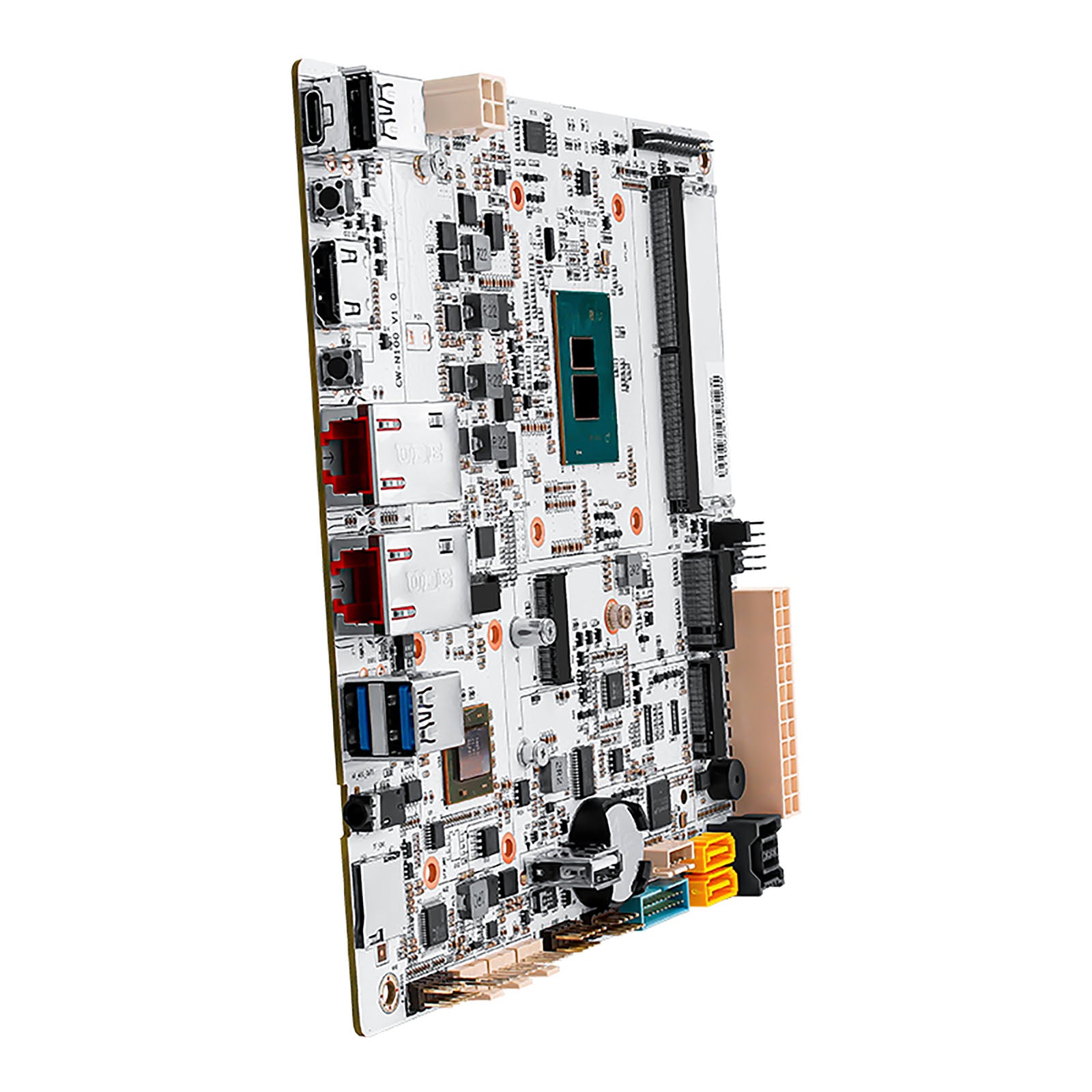

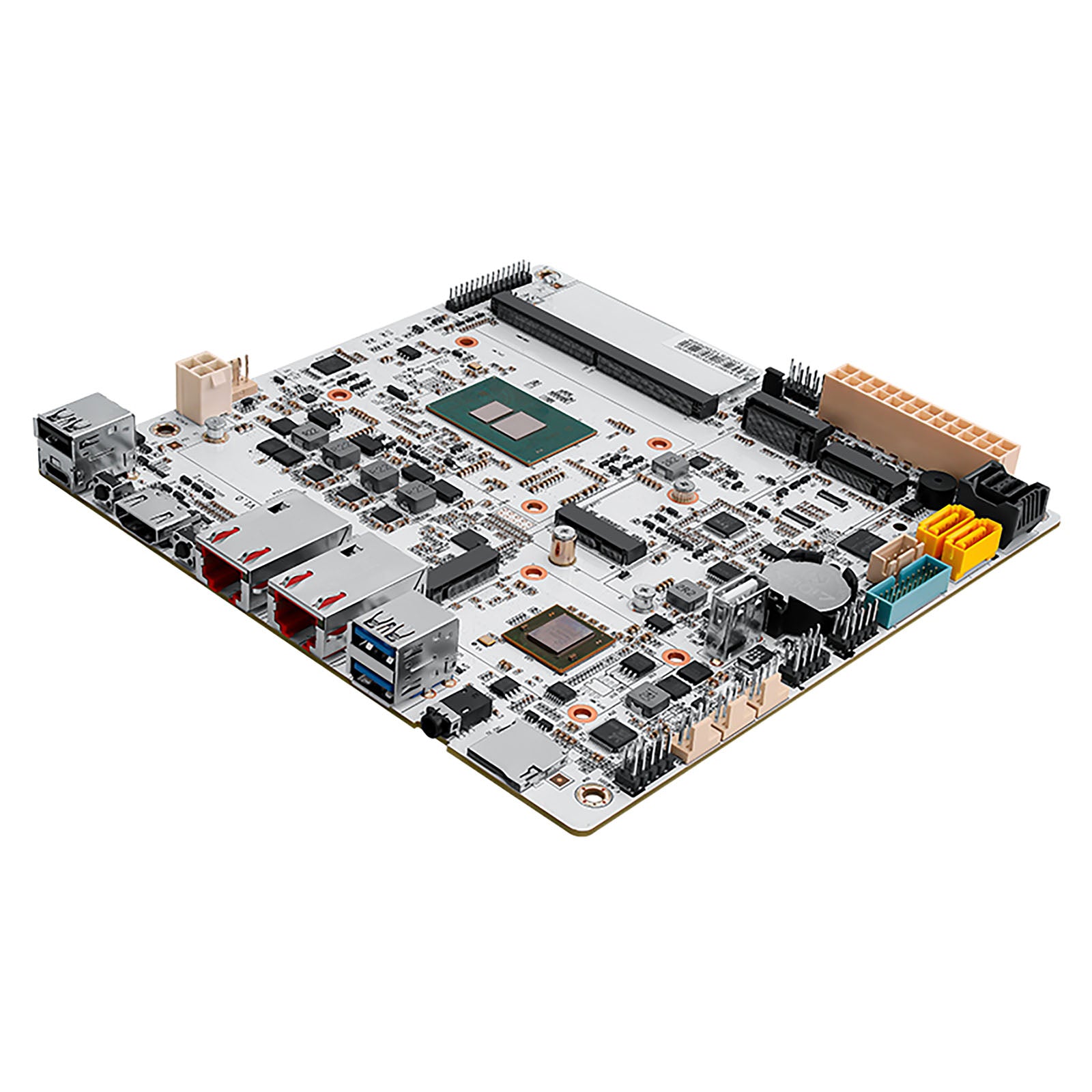

- Processor: Intel Alder Lake-N / Twin Lake Series,N150 4-Core 4-Thread, Low Power Consumption, Mainstream Popular Processor
- Memory: 1 × SO-DIMM DDR5 Memory Slot,Compatible with 4800MHz Frequency,Single-Channel, Up to 48GB
- Storage: 6 × SATA 3.0 6Gbps Ports, All Expanded via ASM1166 Controller,3 × M.2 NVMe Slots with PCIe 3.0 x1 Signal
- Network: 2 × Intel X550-AT2 10G Network Card Chips
- Display:1 × HDMI 2.0, Supports 4K@60Hz,1 × eDP, Supports 1920×1080@60Hz
- Power Supply:ATX-24PIN + ATX-4PIN
- Expansion:1 × eMMC External Hard Drive Socket, 1 × M.2 2230 CNVio2 WiFi Slot, Recommended for Intel AX201NGW / AX211NGW,1 × TF Card Slot

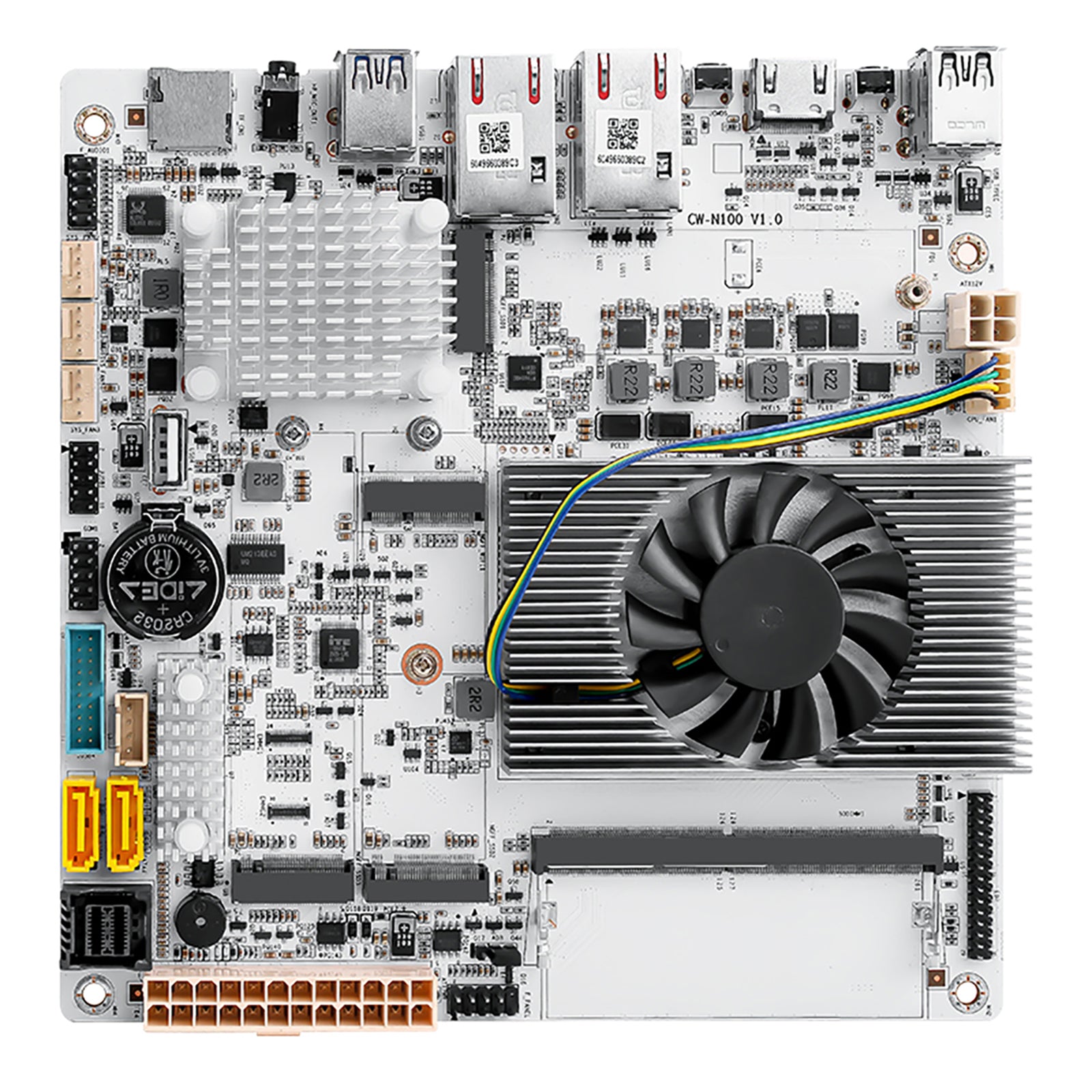

- Dimensions: 170mm x 170mm Standard ITX Form Factor
- System Support: Microsoft Windows10/11、Windows Server;Linux Compatible; UEFI Boot Mode Supported
- TDP:Base Frequency Power Consumption: 6W
- Powerful Low-Power Processor：Equipped with Intel N150 4-Core 4-Thread CPU, designed for 24/7 NAS operation with ultra-low power consumption, delivering stable performance for multi-tasking storage scenarios.

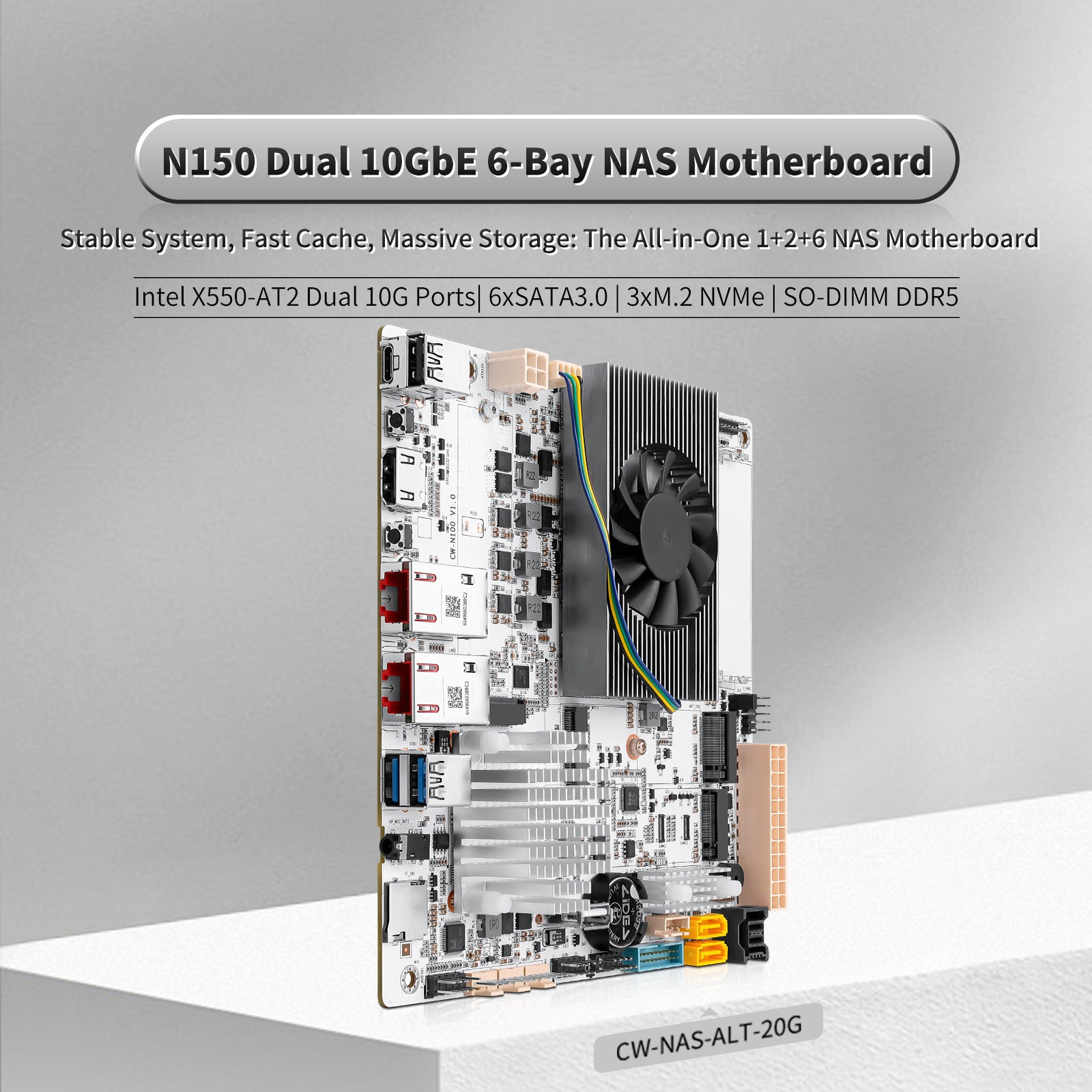

- Dual 10G High-Speed Ethernet：Features 2 × Intel X550-AT2 10G RJ45 10GBASE-T ports, offering excellent compatibility and stable high-speed transmission, ideal for fast data backup, file sharing and network acceleration.

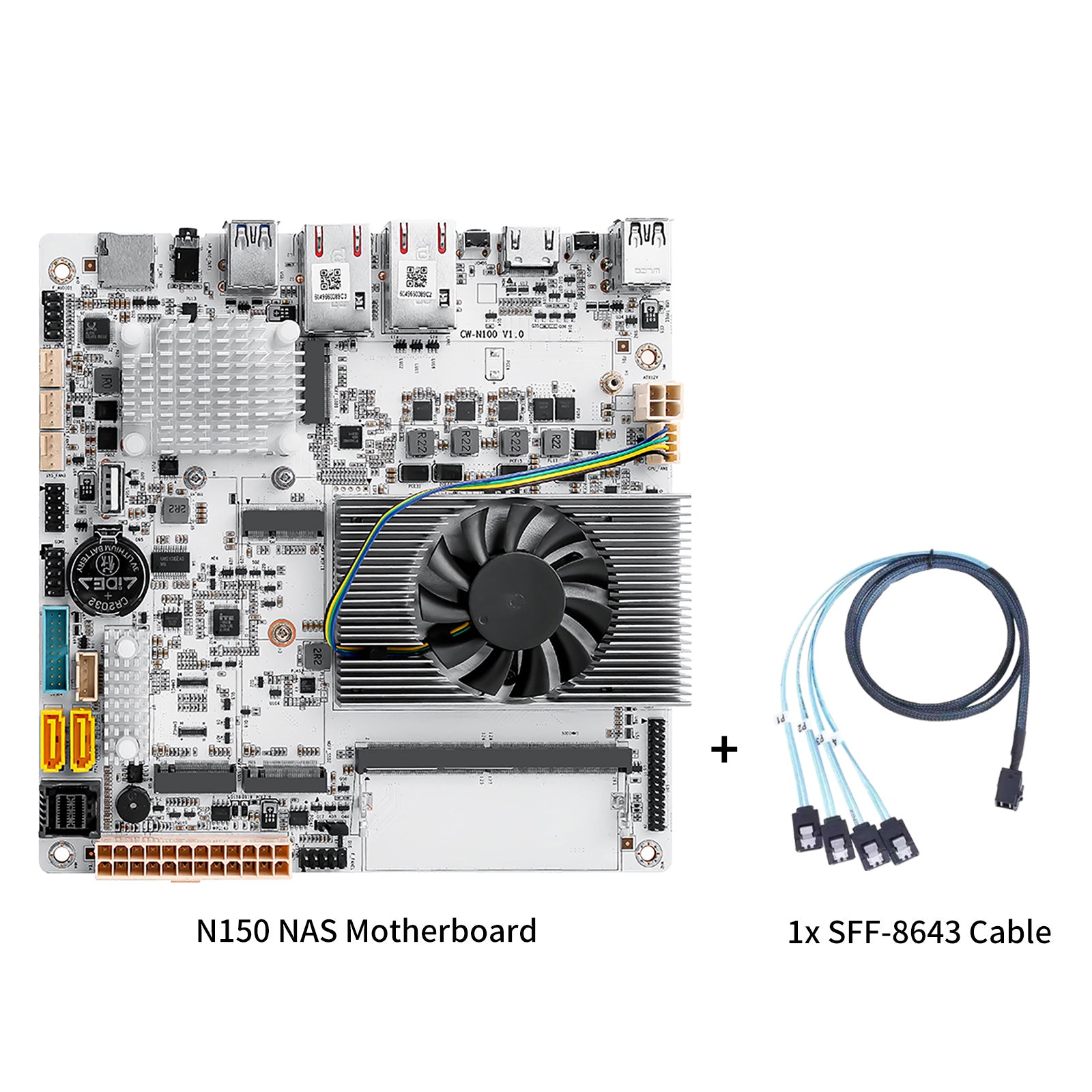

- Massive Storage Expansion：Comes with 6 × SATA 3.0 ports (expanded via ASM1166 controller over PCIe 3.0 x2) and 3 × M.2 2280 NVMe slots, supporting large-capacity HDDs and high-speed SSDs for massive data storage and cache acceleration.

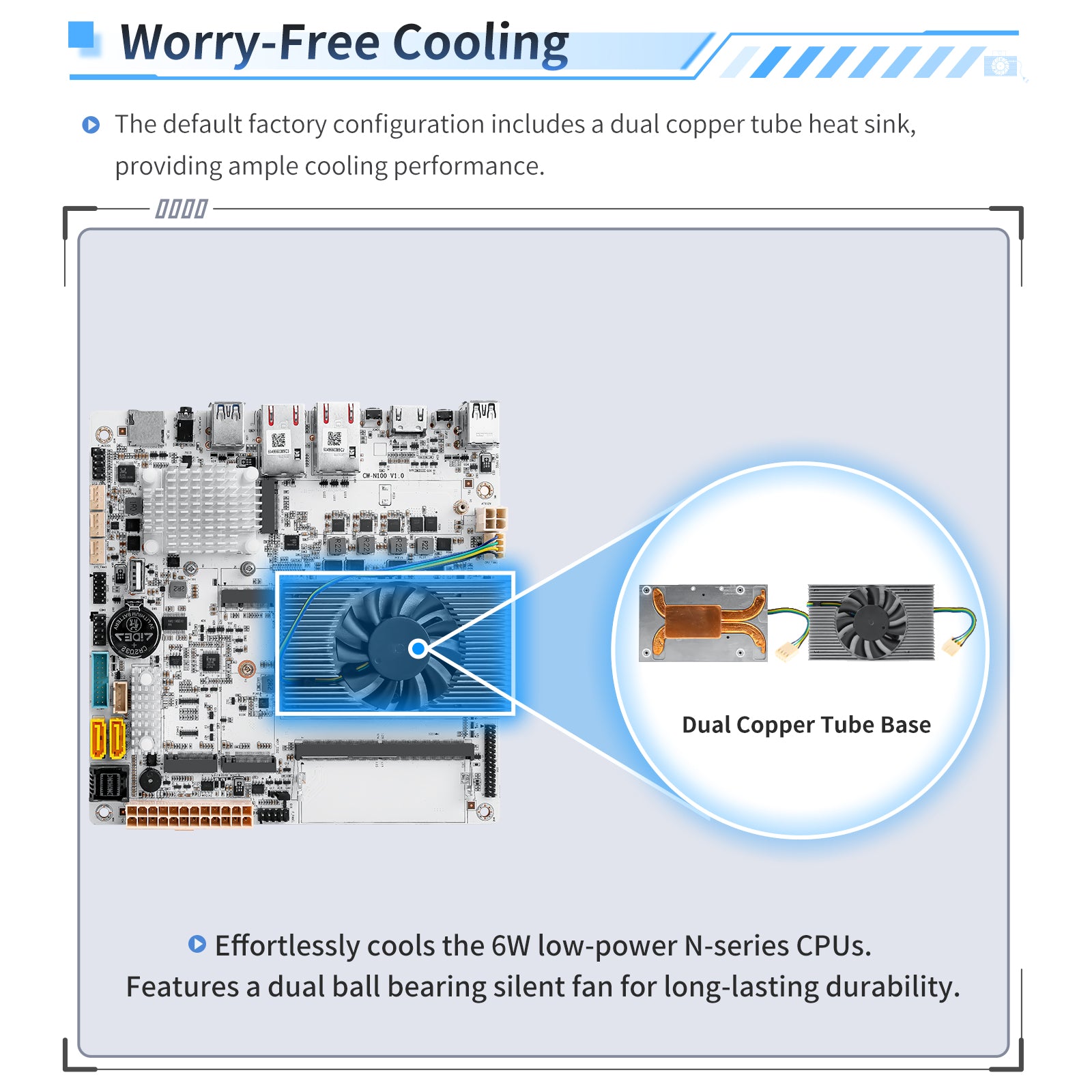

- Flexible Cooling & Standard ITX Form Factor：Default dual copper tube cooler with dual ball bearing silent fan; replaceable bracket supports LGA115X/1700 third-party fans for custom cooling. 170mm×170mm standard ITX size with ATX 24PIN+4PIN power supply, fits most mainstream NAS chassis.

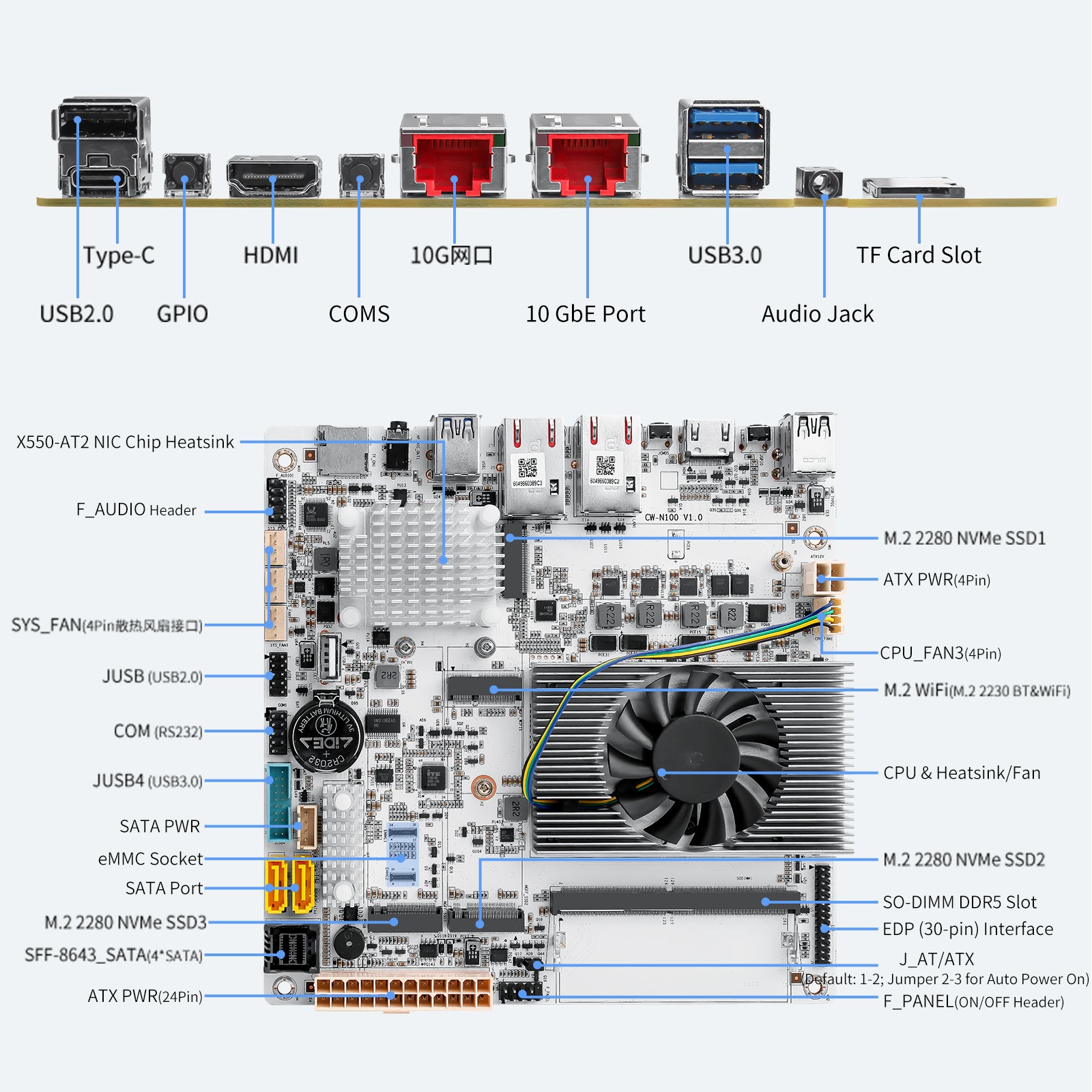

- Rich Expansion & Display Interfaces：1 × SO-DIMM DDR5 slot (up to 48GB, 4800MHz), 1 × M.2 CNVio2 WiFi/Bluetooth expansion slot, plus HDMI 4K@60Hz + eDP 1920×1080@60Hz dual display outputs, meeting diverse usage needs.
- DIY NOTE: The motherboard requires both 24PIN + 4PIN power connections to power up. It will take a few minutes (3-10mins) for the motherboard to read the memory information when you first turn on it, please be patient
