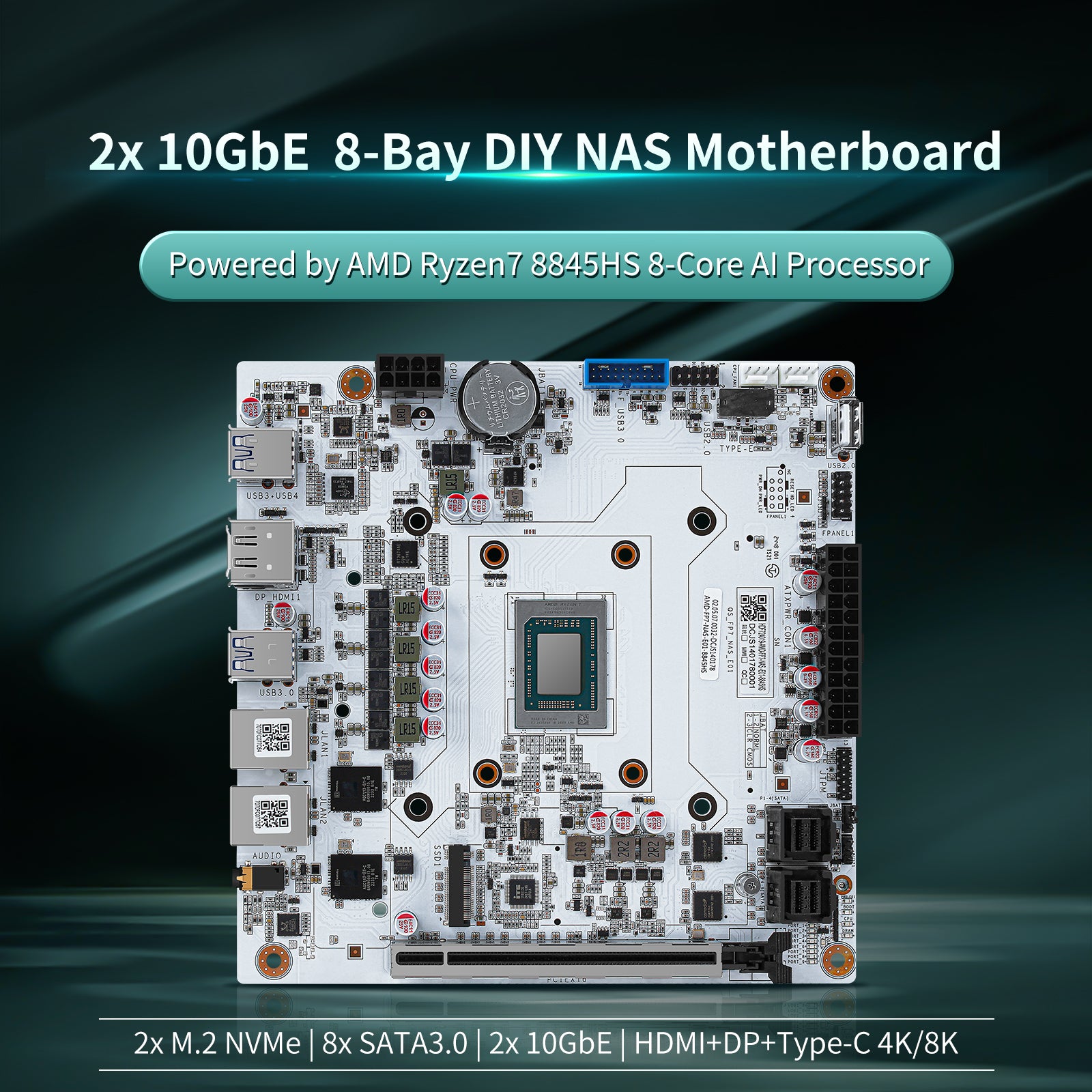

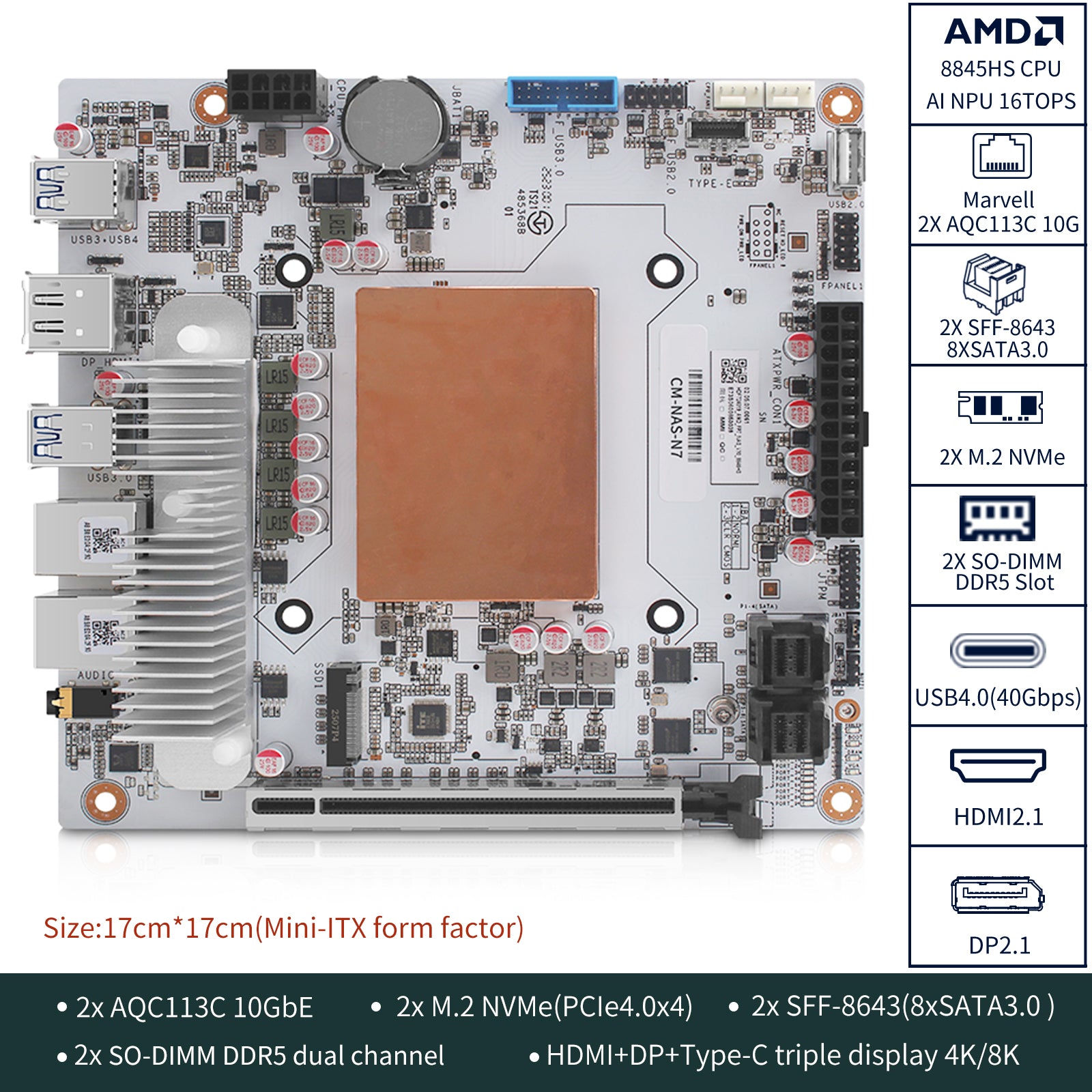

1. AMD Hardware Configuration
N7 NAS Motherboard is powered by the AMD Ryzen™ 8845HS processor (Zen4 architecture, 8 cores, 16 threads).Equipped with AMD Ryzen™ AI NPU, delivering up to 16 TOPS of AI performance.

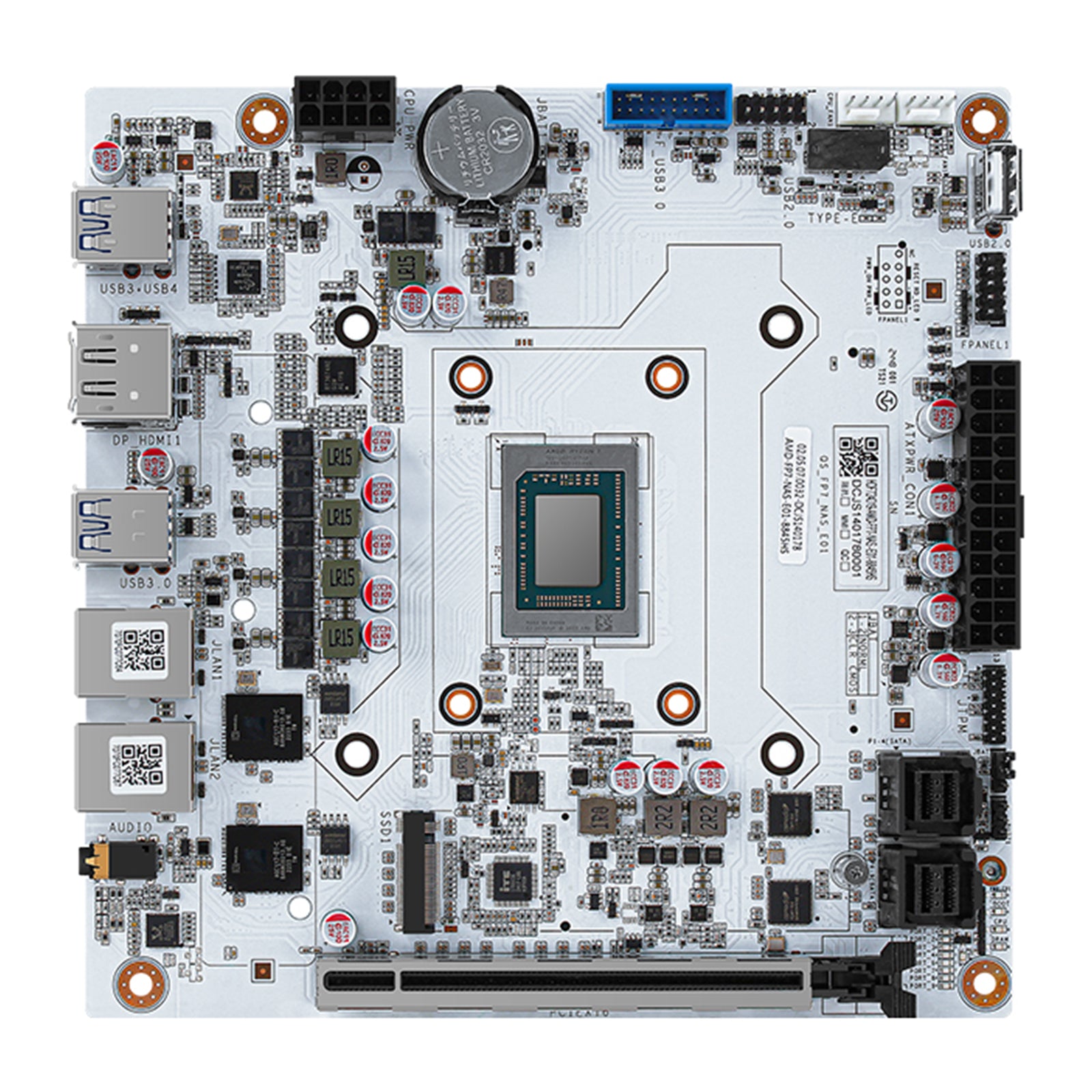

2. Standard Mini-ITX Form Factor
Compact size: 6.7 × 6.7 inches (17.0 × 17.0 cm).ATX 24Pin + 4Pin power design for stable operation (Note: Power supply and fan are not included in the package).This motherboard is Ideal for diverse application scenarios, including DIY builds.
3. Memory & Storage Flexibility

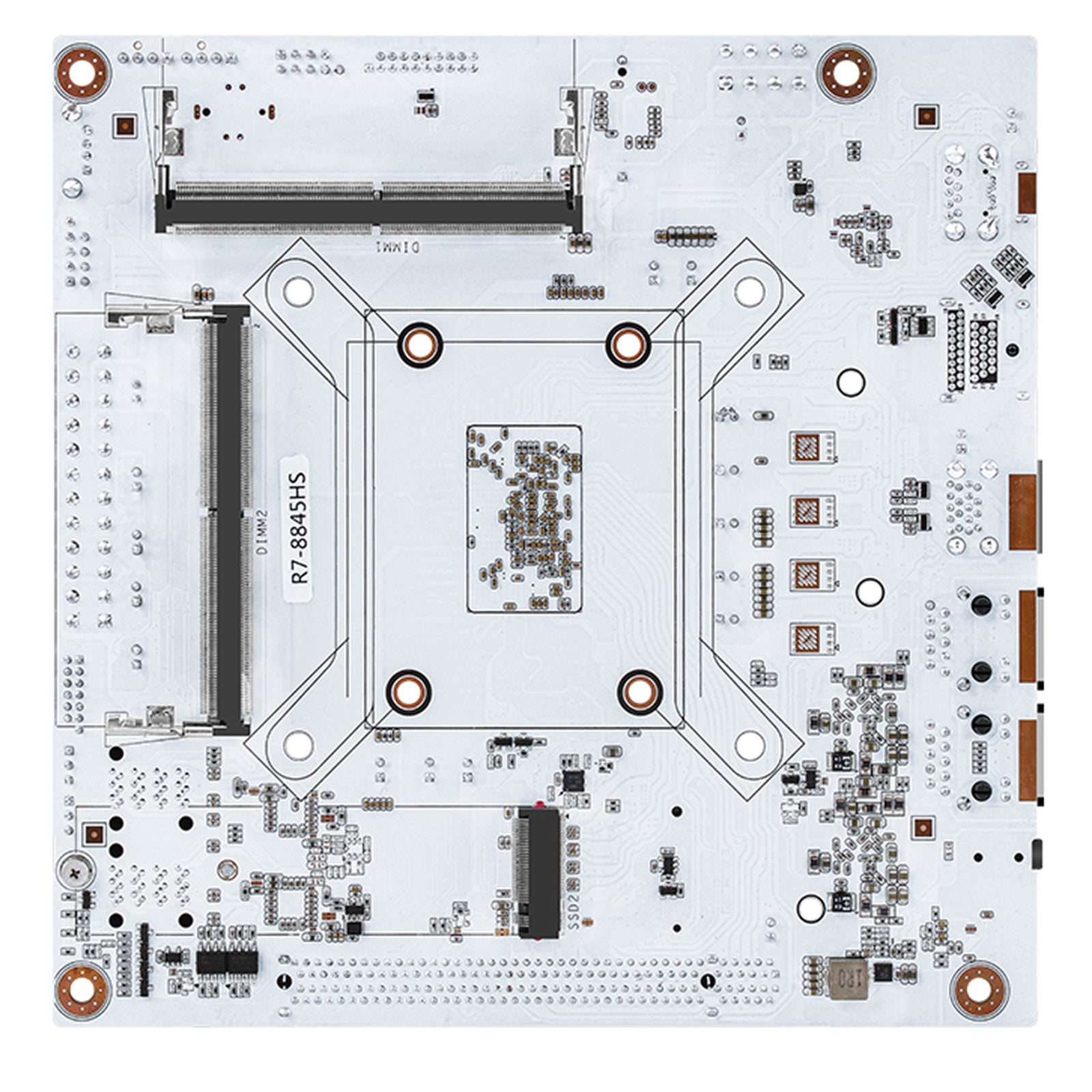

N7 8-bay motherboard Supports dual-channel SO-DIMM DDR5-5600MHz laptop memory (backward compatible, up to 48GB per stick).2 × M.2 NVMe 2280 slots (PCIe 4.0 ×4) for high-speed storage.2 × SFF-8643 cables included, enabling 8 SATA 3.0 ports (8-Bay expansion) for massive storage capacity.
4. Rich Expansion & Connectivity
This mini-ITX board has 2x10G RJ45 ports (AQC-113C-B1, auto-negotiating 1000M/2.5G/5G/10G).1 × PCIe x16 slot (PCIe 4.0 ×8 signal, can be split into 2 × x4 signals).1 × USB4 Type-C (40Gbps), 3 × USB 3.2 Gen1 (5Gbps), and 1 × 3.5mm combo audio jack.It supports triple-display output (4K/8K) via HDMI + DP + Type-C.
5. Efficient Cooling Solution

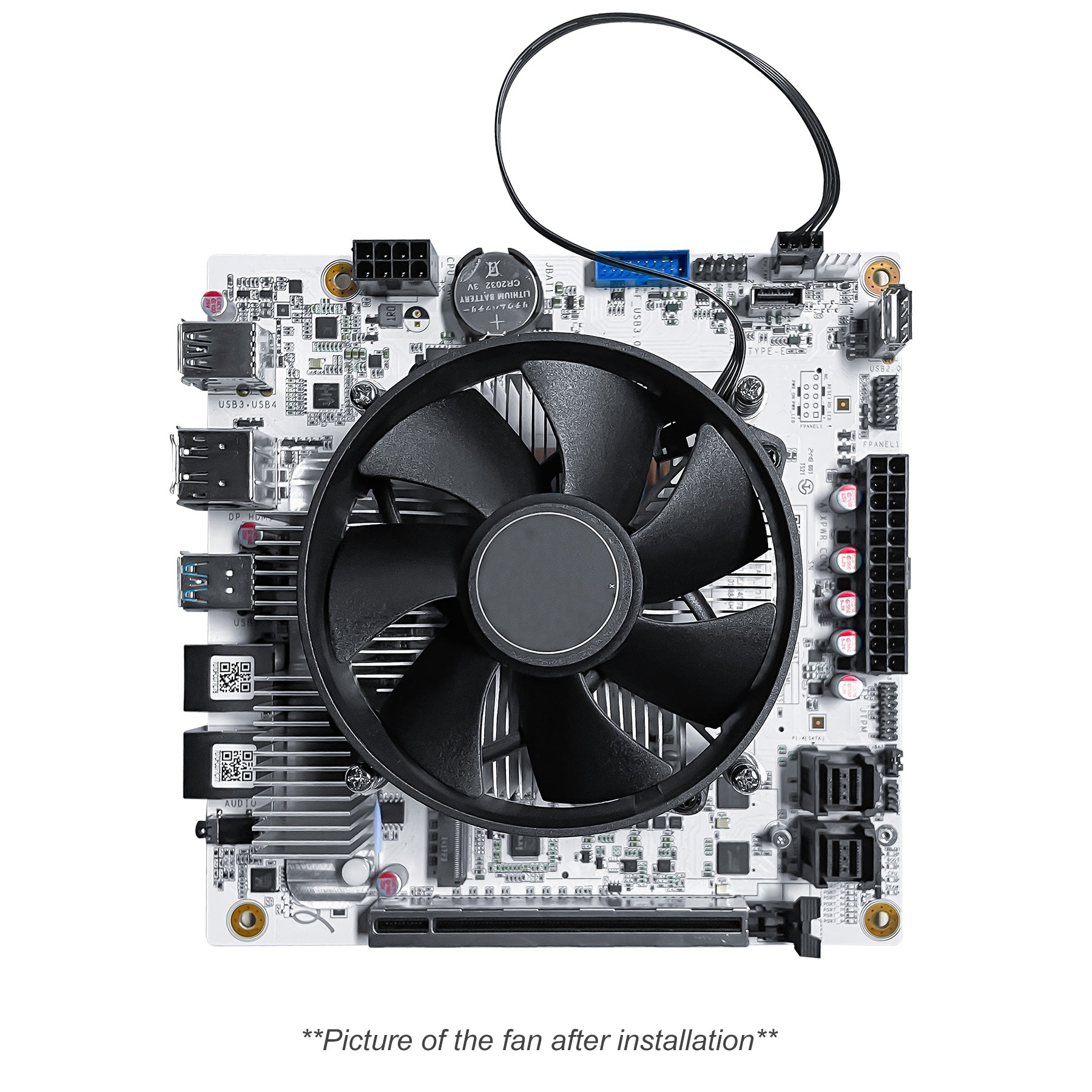

It includes a pure copper heatsink by default.Compatible with LGA1700-series CPU coolers.

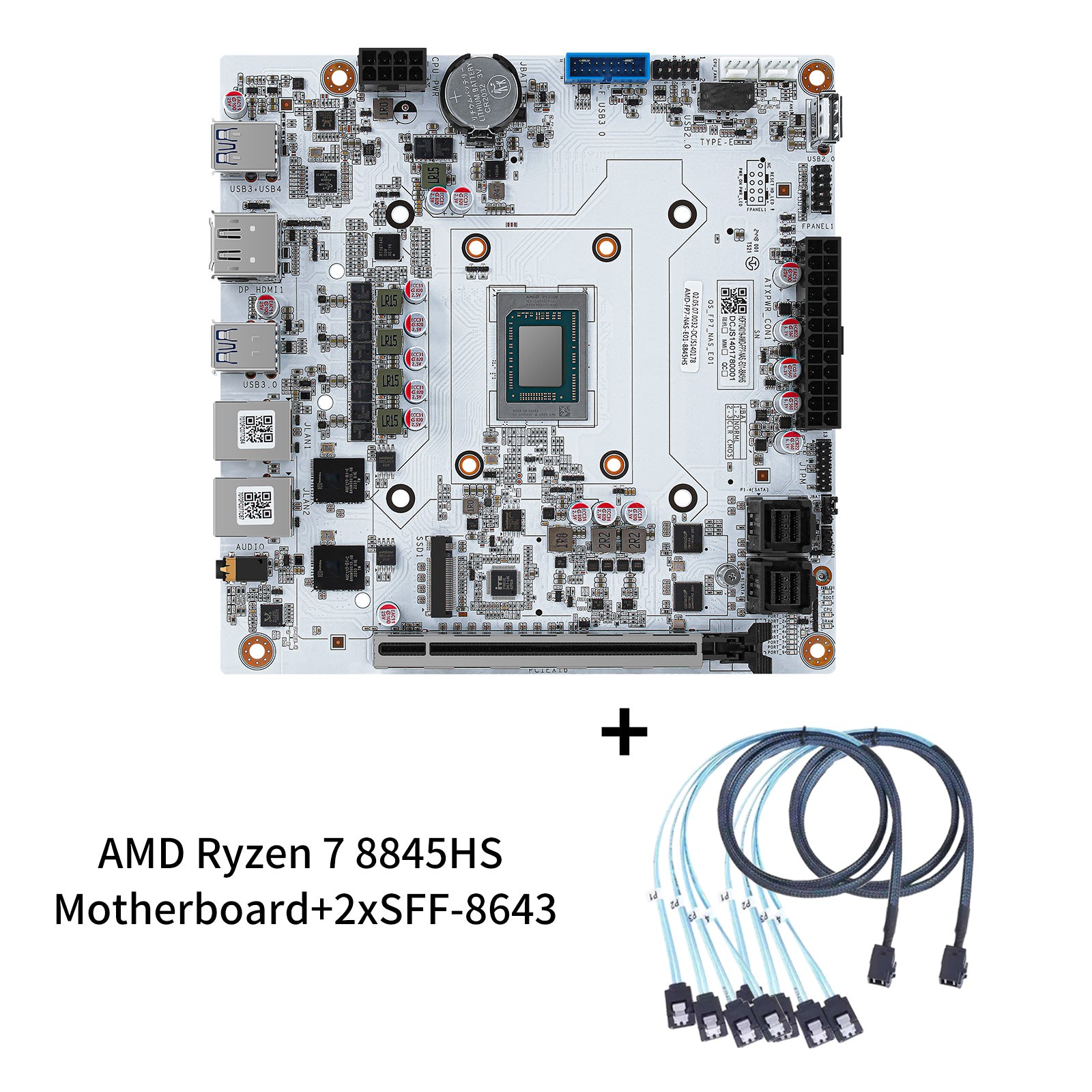

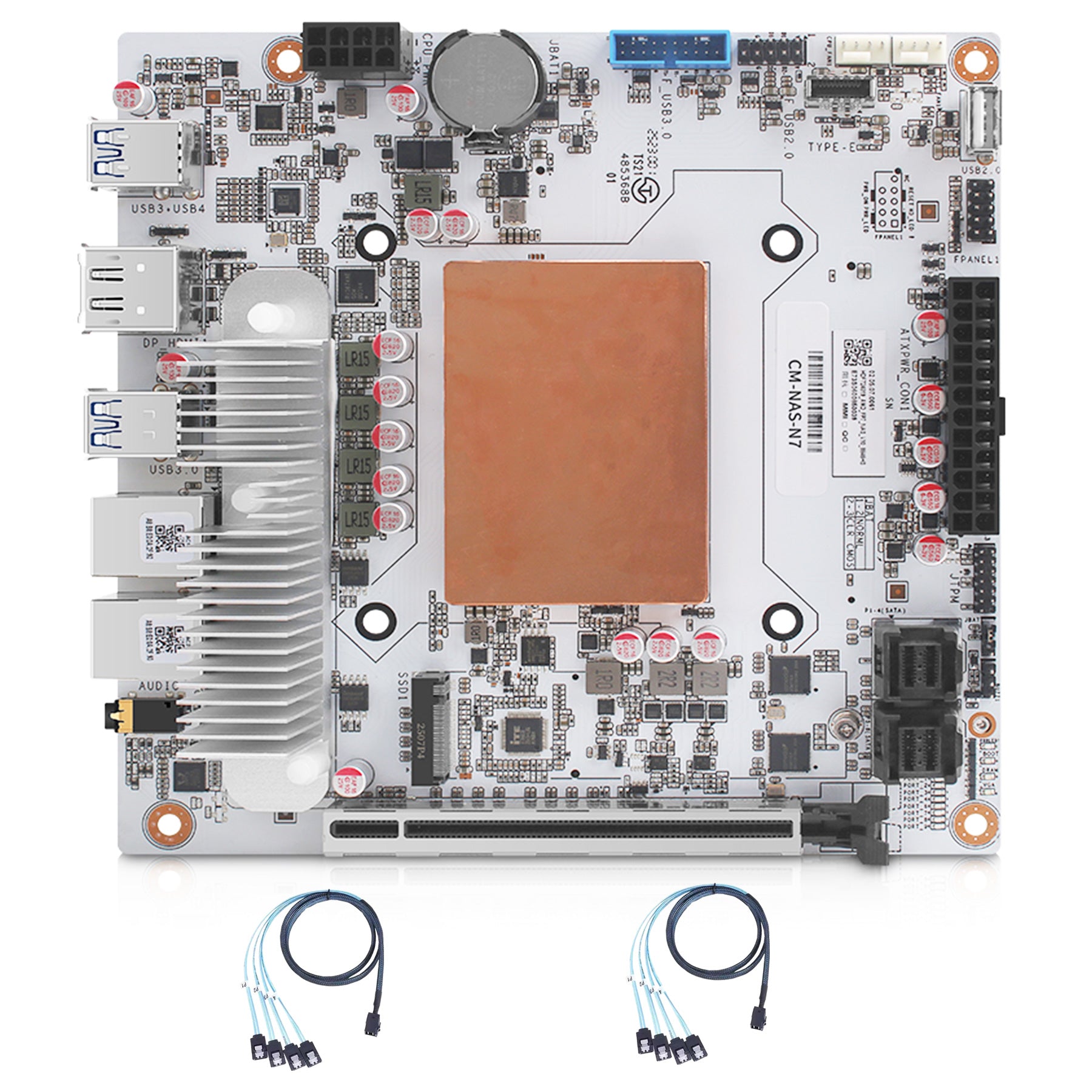

Package Includes:1 × N7 8845HS 8-Bay NAS ITX motherboard,2 × SFF-8643 cables,1 × I/O Shield,Assorted screws,1 × Warranty card
More :

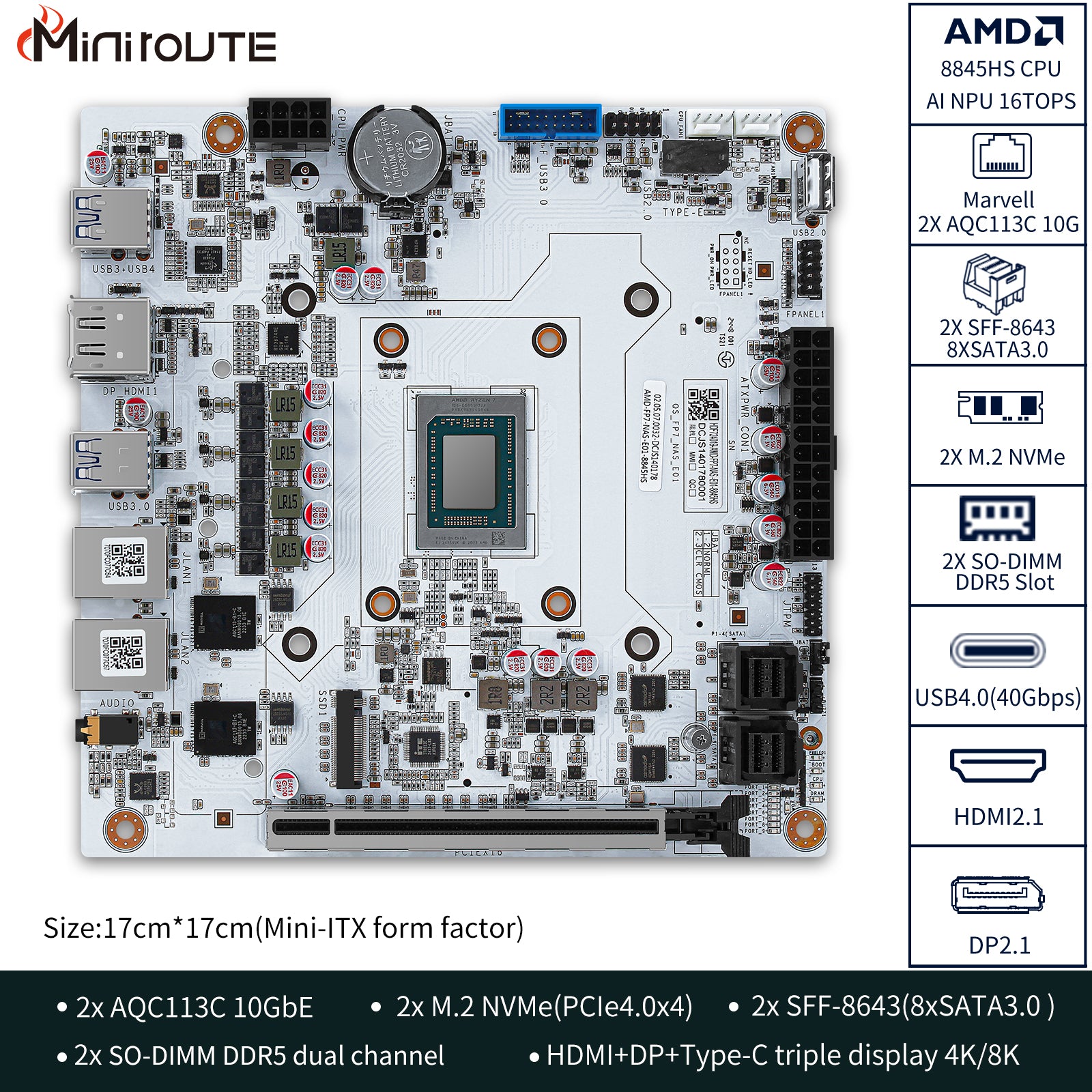

►Processor: AMD Ryzen™ 8845HS (Zen4 architecture, 8 cores, 16 threads)
►AI NPU: AMD Ryzen™ AI NPU, up to 16 TOPS
►Form Factor: ITX (17cm × 17cm), compatible with LGA1700 CPU coolers

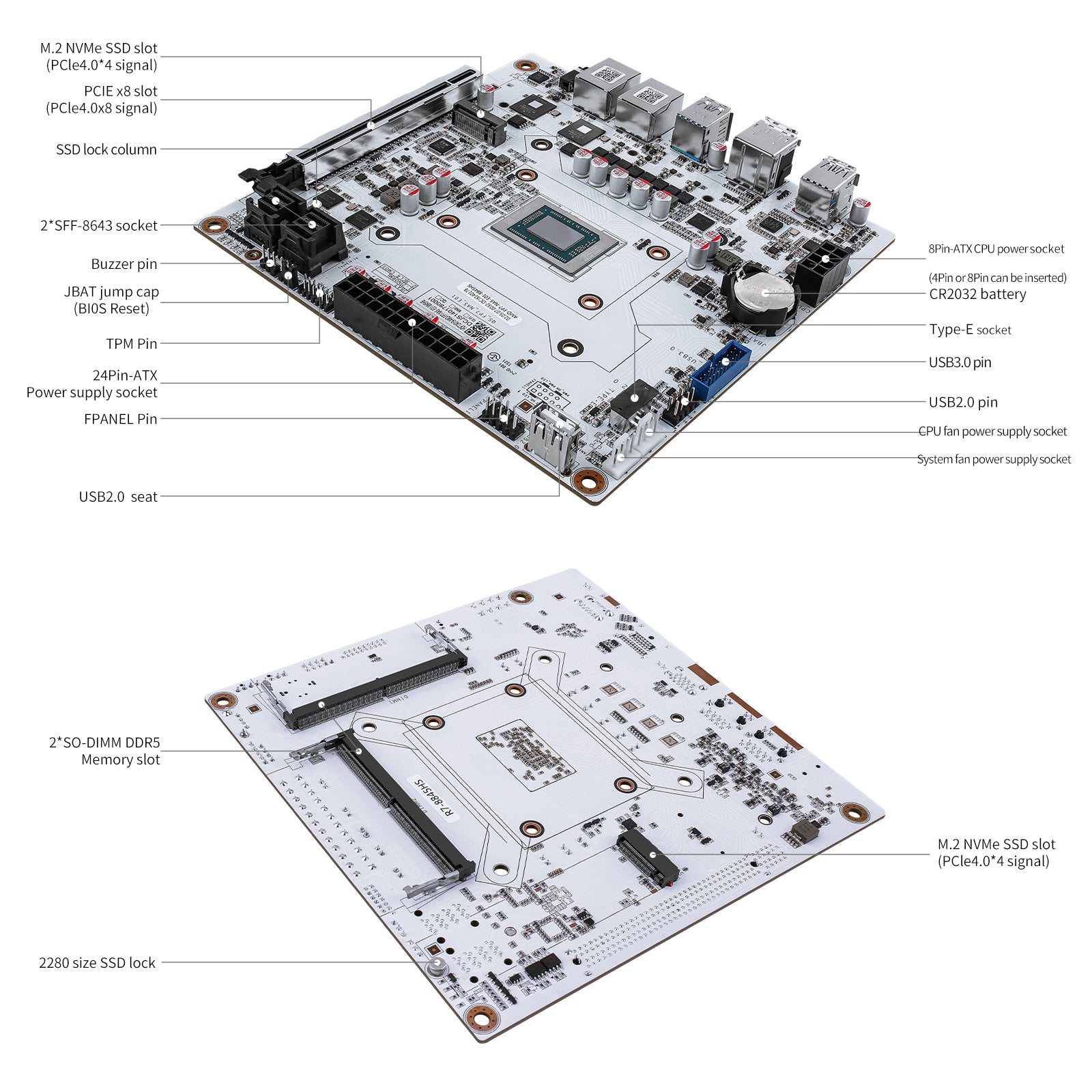

►Expansion Slots:1 × PCIe x16 slot (supports PCIe 4.0 x8, can be split into 2 × x4 signals)
►Storage: 2 × SFF-8643 (1-to-4 cables, expandable to 8 SATA ports)
2 × M.2 NVMe slots (PCIe 4.0 x4, 2280 size)
►Memory: Dual-channel SO-DIMM DDR5 (default 5600MHz, backward compatible),single up to 48G
►Networking: 2 × 10G RJ45 ports (AQC-113C, auto-negotiating 1000M/2.5G/5G/10G)
►Display Outputs: HDMI + DP + Type-C (supports triple display, 4K/8K)

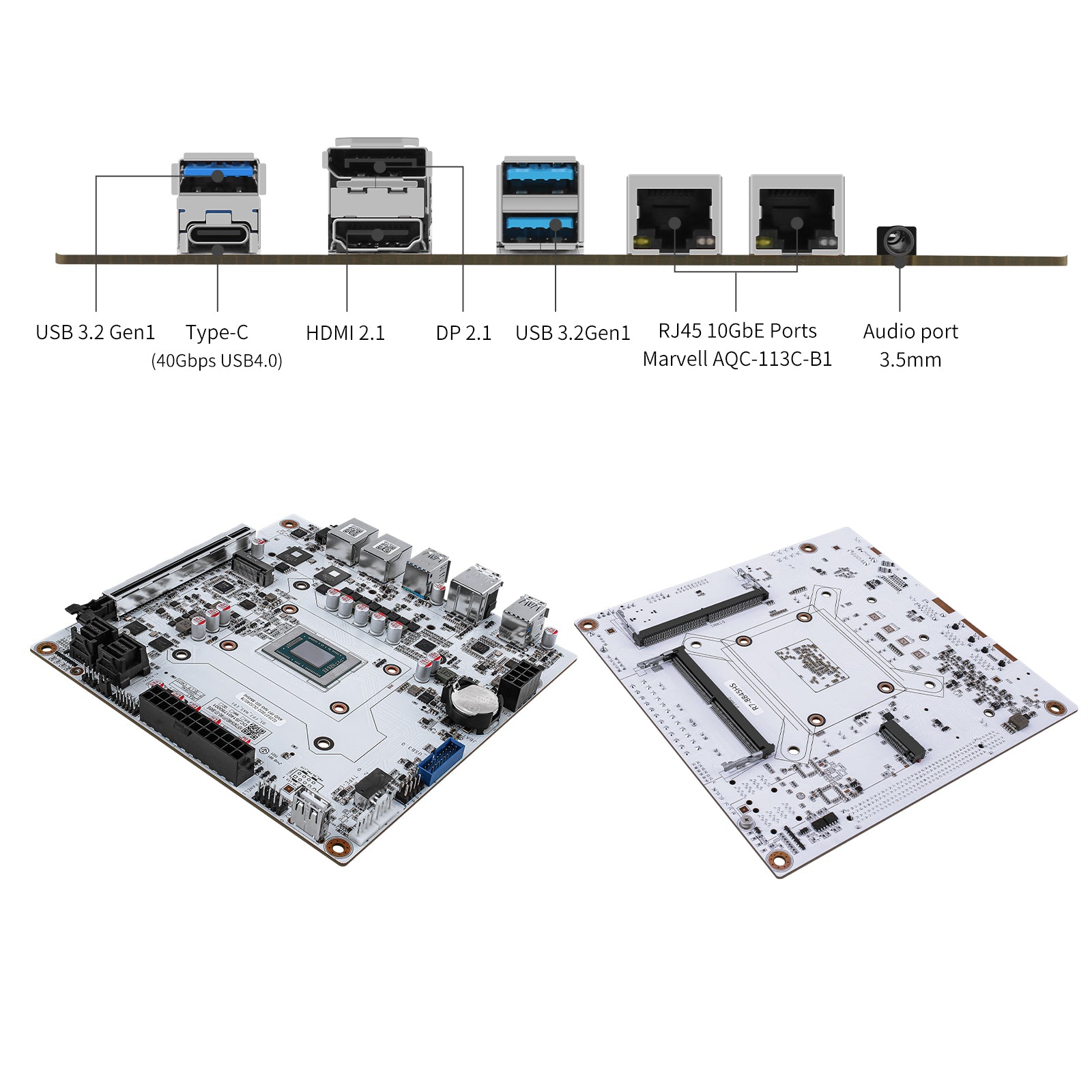

►USB & Connectivity:
1 × USB4 Type-C (40Gbps)
3 × USB 3.2 Gen1 (5Gbps)
1 × Internal USB 3.0 header (for front panel)
1 × Internal Type-E header (for front panel)
1 × Internal USB 2.0 header (for encryption, boot, etc.)
