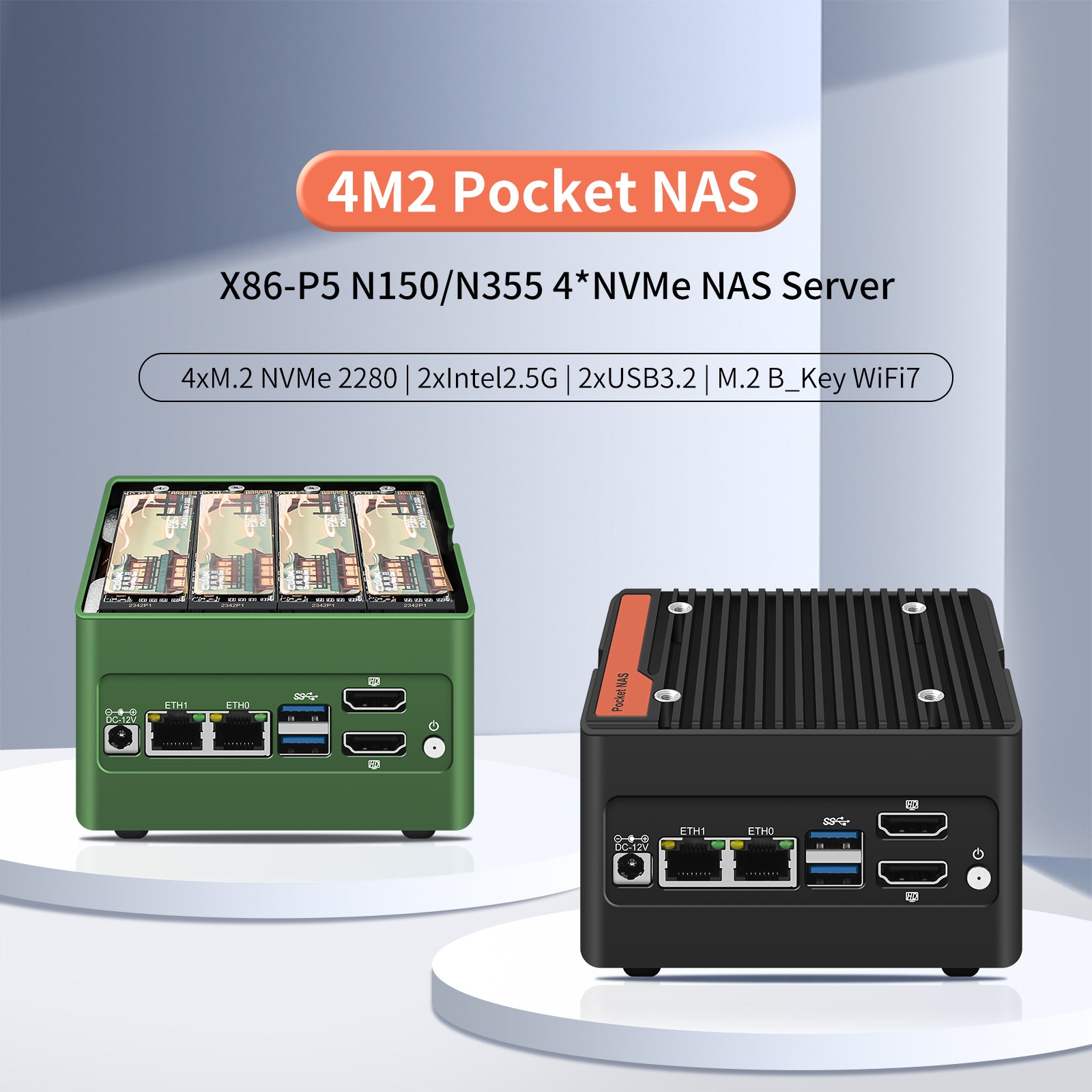

- This Micro NAS is Powered by Intel Twin Lake processor N150(8C/8T,up to 3.6GHz,Smart Cache 6MB),which can greatly improve the performance of the computer while reducing energy consumption.Pre-installed Win11/10, is a ideal computer for data storage.
- Support 1*SO-DIMM DDR5 4800MHz Max 48GB and 4*M.22280 NVMe PCle3.0x1 ,comes with 2 * HDMI2.0 (4K 4096 x 2160@60Hz),2 * Intel i226-V(2.5GbE）and 2 * USB3.2 Gen2 (10Gbps)，M.2 B_KEY Slot supports BT5.4/WiFi6/WiFi7 module.
- With M.2 PCIe3.0 x4 signal of this motherboard,this pocket NAS,through the adapter board, it splits out four 4*M.2 2280 NVMe SSD hard drives, enabling you to have large-capacity and high-speed storage space. This NAS is a great helper for storing documents, photos and data.
- This NAS is equipped with an advanced cooling system. Heat is conducted by copper sheets to aluminum profiles for heat dissipation. It has a built-in 7010 ball bearing fan(PMW temperature-controlled silent fan). Additionally, a optional 7015 USB cooling fan can be installed on the outer casing of the machine to ensure its continuous, stable and reliable operation.
- A compact and portable NAS server with a size of only 100mm × 100mm × 58.5mm,it can be directly put into the pocket, which is convenient for you to carry it around and conduct mobile office work in different workplaces.
-
Processor: Intel Twin Lake N150/N355
RAM: 1 * SO-DIMM DDR5 4800MHz Max 48GB
Storage: 4 * M.2 2280 NVMe PCIe3.0 x1
Graphics Card：Intel UHD Graphics N150(24EU) / N355(32EU)
Displays: 2 * HDMI2.0 (4K 4096 x 2160@60Hz)
Ethernet: 2 * Intel i226-V(2.5GbE）
USB: 2 * USB3.2 Gen2 10Gbps
WiFi: M.2 B_Key slot supports BT5.4/WiFi6/WiFi7 module
Cooling System: aluminum heatsink with 7010 ball bearing silent fan
Dimensions: 100mm * 100mm * 58.5mm / motherboard：90mm*90mm
BIOS: AMI EFI BIOS Auto Power On、Wake-On-Lan 、PXE
Power: DC - IN 12V 55mm*25mm
Work Environment: -10℃-75℃,10%-90% Relative Humidity
OS: Windows10、Windows11、Linux、NAS
